Getting Down to Brass Tacks: How These Things Actually Work

So how do they pull off this magic? Picture a pipe that’s transporting hot fluid — maybe heated water or some other hotshot of industry. Now you want to cool it off, or maybe heat up the air around it. Without the fins, heat has a difficult time jumping from the tube to the air (or vice versa) because there isn’t much contact surface.

Oh, but add fins—those long, extended surfaces produced from thermally conductive materials, say, aluminum or copper (more on the juicy background of that shortly)—and you suddenly expand the surface area exposed to the other fluid. It’s like going from a little tent to a huge open-air stadium. A little more space for that heat to do its thing.

Here’s the breakdown:

• Conduction: The warmth moves from the wall of the tube into the fins. It is a bit like a relay race, in which the tube hands off the baton to the fin.
• Convection: From there, the heat travels from the skin of the fins to the fluid (such as air or gas) circulating between the fin banks. So that extra surface area really shines here because it means more interaction and better heat exchange.
• Temperature Differential: The entire operation requires the hot and cold fluids to have a difference in temperature. The larger the difference, the faster the heat transfer — just as a fire hose is faster than a garden hose.

And we’ll get to the key point in a second: the two fluids almost never actually mix. One runs through the tubes, the other outside, and heat flows through the walls of the tubes and fins. It is a clean, efficient move.

Why Go Finned? The Sweet, Sweet Benefits

Alright, so they work. But what makes a finned tube heat exchanger a better option than a plain tube? Hold on to your butts, because this is where the value proposition goes into even greater overdrive.

• Crank Up the Heat Transfer: The biggest victory? Way more heat transfer for the same size thing. It’s like widening a highway — you can accommodate more traffic at once.
• Shrink Your Footprint: Since finned tube heat exchangers are very efficient, you can use a smaller-sized one in most cases to do the job as a much larger plain tube one. That’s property you can use to do other profit-producing work. It’s the efficiency of a tiny house on the output of a mansion.
• Temperature Taming: Efficiency can’t always be boosted by turning up the heat — your materials may be sensitive. Fins, as we saw, overcome this by maximizing the surface area instead. It’s as if you could cool a room without cranking the AC to Arctic blast.
• Battling the Fouling Gremlins: Some cool looking finned tube heat exchangers, such as those from Sterling TT with vortex clean air technology, can actually fight fouling – that stuff that totally screws up efficiency and costs you way too many dollars in maintenance. Less gunk, more go!
• Save Those Benjamins (Energy & Cost Savings): The better the heat transfer, the less energy is wasted. That goes right to operating expenses. It’s somewhat akin to getting better gas mileage on your car — the savings over time add up.
• Versatile is Key: These not one-tricks! Finned tube heat exchanger may be supplied in different fin types and materials to suit various application and fluids. It’s the Swiss Army knife of thermal management, in a way.

Different Families of Finned Tube Types

Now, to the taste of fins you can slap on a tube. It’s not just about slapping any old hunk of metal on there. Various designs of fins are needed for different applications.

• Elfin Fins: These little guys are as slim as a fairy tale creature and are just one of many types of shapes and sizes of fins to use for upgrades and rugged locations. They’re fit tight and hearty so they can handle a whole lot of action. And, you can even hose them out with some high-pressure H20 — try that with some flimsy fins.
• nElfin Fins (Elfin 2.0): These are an upgraded version of the Elfin. They’re built for even higher thermal efficiency and can withstand temperatures that are off the charts. When it’s really hot out, these are your guys.
• HEI Fins (The Economy Workhorse): If your looking for a budget option that provides good heat removal for general air and machine cooling, HEI fl fins are your friend. They may not be full of all the fancy bells and whistles but they all get the job done without denting the wallet too much.
• LL-Fins (Low and Behold the Efficiency): Also referred to as low-finned or longitudinal low fins, these are relatively low and long enough to be efficient, and thus are good for small footprint designs that still need to be efficient.
• T-Fins (The T-Rex of Surface Area) – Their T-shaped cross-section delivers the maximum in surface area without being unwieldy or heavy, and the added leverage makes long turns silky smooth and snappy, not slow and shuddering. More surface, same size — that’s a win-win.
• Spiral and Helical Wound Fins (The Twisters): These are wound on the tube in Helical or screw form. It’s like giving a tube a heat-grabbing hug.
• Integon (Born Integrated): The fins in the Born Integrated configuration are not fixed on, in fact, they are rolled out of the tube wall itself, this also making them an integral part of a tube. Wouldn’t want to tan that one off my finger, bare or not.
• Longitudinal Fins (Going With the Flow): These fins are orientated down the length of the tube and are most effective when fluid on the outside of the tubes is uniform along that axis. Suitable for viscous liquids, it appears.
• Cross Fins (The Crossflow Champions): These are very much like little metal washers with a hole, which space out from each other along the tube, and perform best in gas flow, turbulent flow, and any flowing fluid that wraps itself around tube walls. Think air coolers — these are frequently your stars.

Here’s a quick rundown in a table:

Material Matters: What Are Fins Made Of?

The type of material you select for your finned tube heat exchanger matters. It influences how well it conducts heat and how long it endures.

Aluminum: This is a favorite among manufacturers for its lightweight quality and as a good heat conductor. And, you can feel a bit greener about your recycling. It’s the crunchy granola athlete of heat transfer.

Copper: It is highly thermally conductive. It is heavy stuff but it is usually worth the weight in top-notch heat transfer if that’s what you’re after.

Copper Alloys, Stainless Steel, Aluminum, and Titanium: TELAWELL can offer different tube diameter and wall thickness combined with fins of these materials. Each has its own strengths based on what an application requires; for example, corrosion resistance or the ability to handle high pressures.

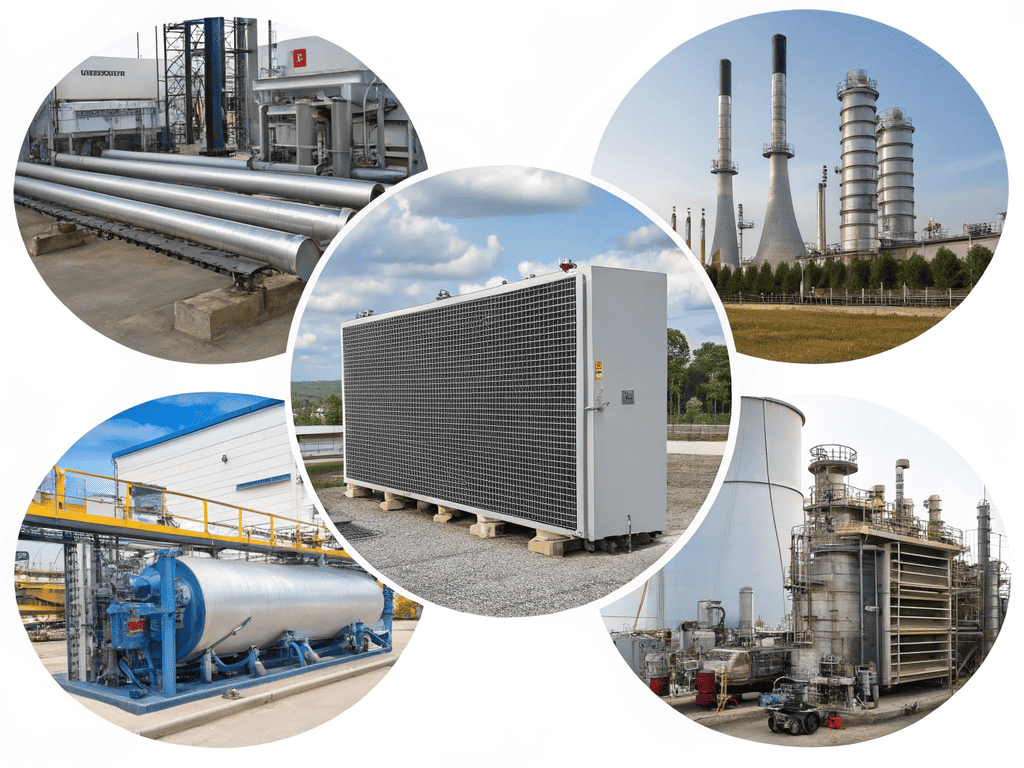

Where Can You Find These Heat Transfer Warriors? Applications Galore!

Finned tube heat exchangers are probably all around you, even if you don’t know it. They’re the quiet workhorses of so many industries.

• Keeping You Cool (HVAC & Refrigeration): They’re a part of your air conditioner’s evaporator and condenser coils. That chilled room you’re in? Thank a finned tube heat exchanger for that.
• Powering the World (Power Generation): From steam condensers to air condensers inside of power plants, they’re a key component to efficient energy production.
• Energy (Oil & Gas drilling) – They are used to heat or cool hydrocarbons and process natural gas.
• Producing chemicals (petro chemical & chemical industry): For heat recovery, preheating and cooling the most diverse range of chemical brews.
• Filling Your Fridge (Food & Drink): They are used in the pasteurizing, sterilizing and cooling of liquids.
• Getting You Around (Automotive): Your car’s  radiator? Yes, that is a finned tube heat exchanger. Intercoolers and oil coolers, ditto. Even those manly truck radiators are dependent on them.
• Taking to the Skies (Aerospace): In aircraft, they are under the hood and keep the cabin cool.
• Cooling Your Tech (Electronics Cooling): They assist in cooling electronic components.
• Waste Not, Want Not (Waste Heat Recovery): Used by smart companies to capture waste heat, and re-use it, saving money and energy.
